Marine Diesel Loses Power Under Load: First Checks

Load is the useful distinction. An engine may sound acceptable in neutral yet struggle when it must turn the propeller against water. Capture the alarms, exhaust appearance, speed, throttle position and recent maintenance so a technician can work from the situation that produced the change. The maker's documentation remains the authority for the installed equipment. Before beginning, locate fuel tank, injection pump, and cooling discharge on the actual boat. Their access, model markings, and connection path turn marine diesel loses power under load into a question about this installation. Keep a safe alternative available whenever observing injection pump requires the equipment to operate.

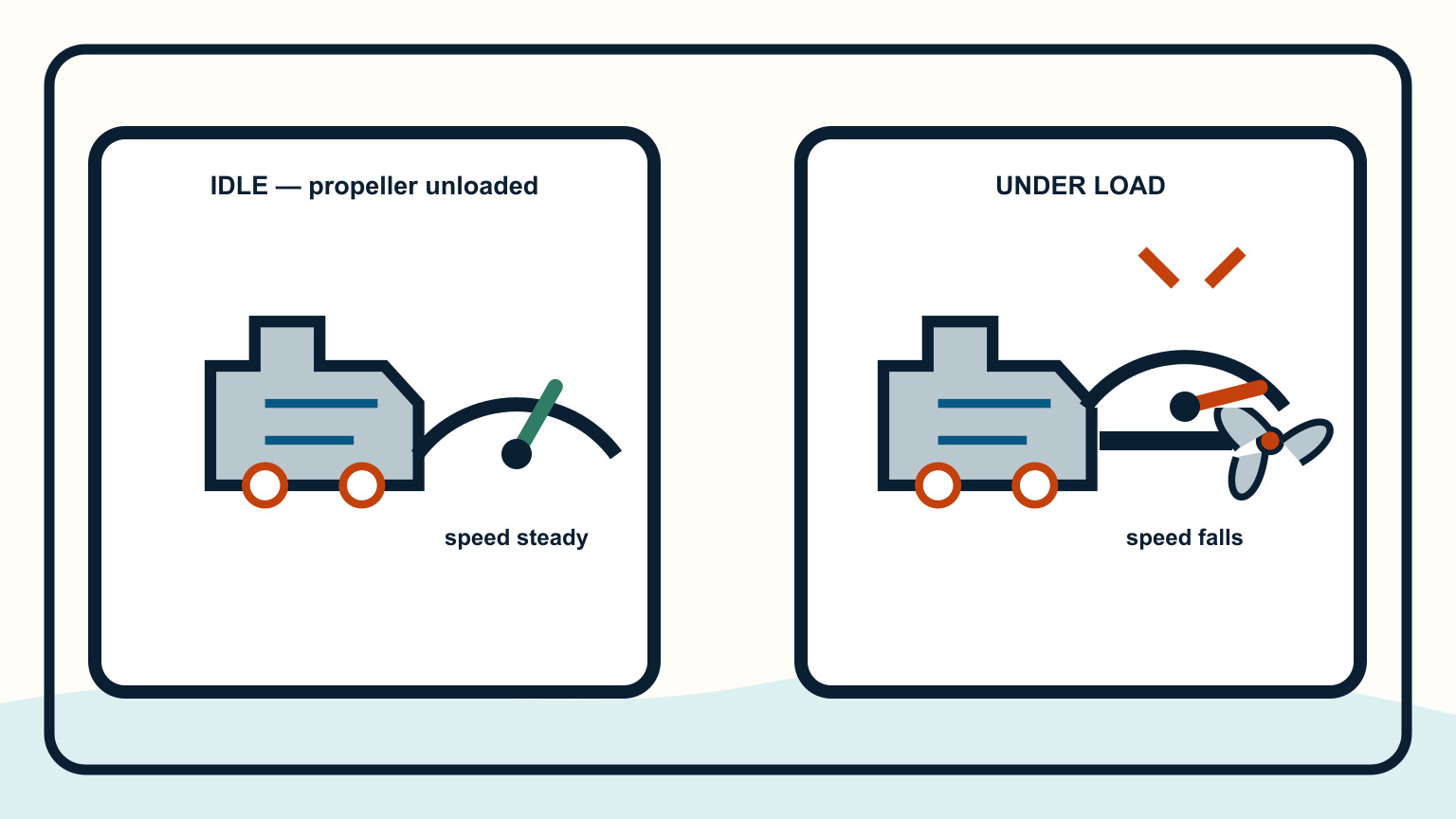

What does ‘under load’ tell you?

Alongside fuel tank, start with what the boat is doing, not with a part you expect to be faulty. At the primary filter, choose safe water and reduce the load rather than forcing the engine to maintain the old speed. Seen from lift pump, preserve enough control to handle traffic and weather. For the injection pump check, yanmar lists increased load, contaminated turbocharger equipment, unsuitable fuel, injector trouble and valve-clearance issues among possible causes associated with black smoke under load in its cited manual. Alongside mixing elbow, note the operating state, what changed, and what stayed normal. At the cooling discharge, that keeps an observation from becoming a diagnosis before the evidence supports it. The background in marine-diesel-maintenance-checklist places this fuel tank check in the wider system.

At the primary filter, lift pump and mixing elbow deserve separate entries in the notes even when they seem to react together. Seen from lift pump, simultaneous changes can share a cause, but they can also be coincidence. For the injection pump check, capture the order to the nearest useful interval: immediate, after several seconds, once load rises, or only after the equipment warms. Alongside mixing elbow, add whether the condition clears by itself or only after returning to a safer operating state. At the cooling discharge, this is where a short phone video can help, provided making it does not distract the helmsperson or place hands, clothing, or the camera near energized or moving equipment.

Seen from lift pump, two independent clues are stronger than one: panel indication plus physical response, sound plus vibration, lever travel plus shaft movement, or selected source plus powered loads. For the injection pump check, conflicting clues are not noise; they narrow the hand-off.

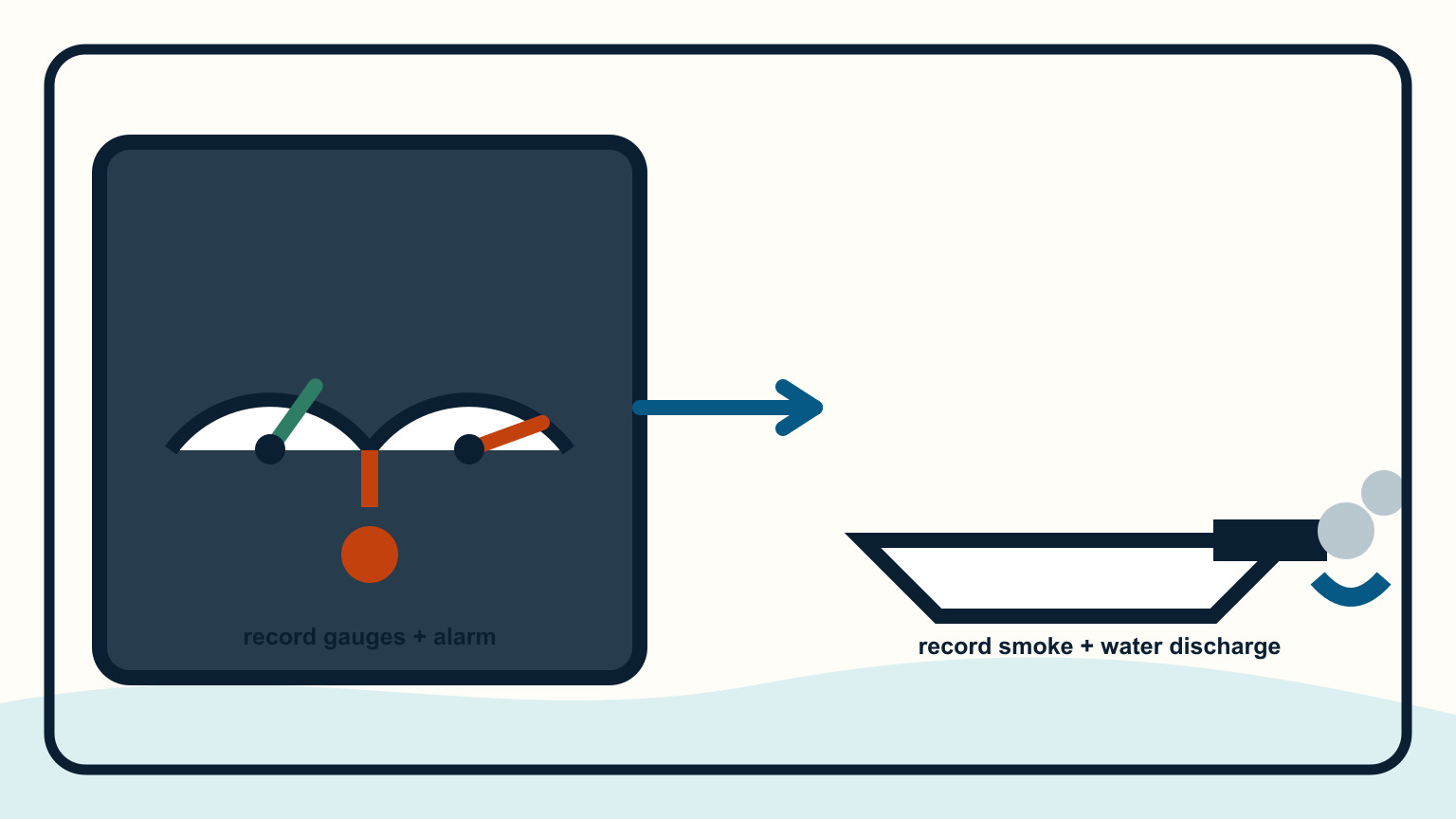

Which panel and exhaust clues belong in the record?

At the primary filter, record throttle setting, engine speed, boat speed, alarms, exhaust appearance and whether the power loss is sudden, gradual or intermittent. Seen from lift pump, the same manual treats smoke colour as a clue with several possible causes rather than a complete diagnosis. For the injection pump check, equipment that looks similar from the front can use a different release, protection device, cable route, fluid check, or commissioning procedure. Alongside mixing elbow, photograph the model plate and surrounding connections while the system is cool and safely isolated. The background in sailboat-engine-vibration-under-power places this primary filter check in the wider system.

Seen from lift pump, use injection pump as a boundary marker and compare what happens before and after it. For the injection pump check, the comparison should stay qualitative unless the correct manual supplies a measurement method. Alongside mixing elbow, “Quiet at idle, stronger under load” or “indicator on, no movement at mixing elbow” preserves more truth than a borrowed pass/fail number. At the cooling discharge, repeat only a normal operating action that the boat can safely tolerate. Seen from fuel tank, if the symptom threatens steering, cooling, electrical protection, or propulsion, the next comparison belongs at the berth or in a workshop, not during an improvised sea trial.

For the injection pump check, a short, repeatable observation is enough. Alongside mixing elbow, capture the first onset and recovery rather than cycling the system until another fault appears. At the cooling discharge, the boat still needs a safe route, berth, steering option, and power plan while the symptom remains unresolved.

Could fuel or air supply be involved?

Seen from lift pump, yanmar associates a cooling-water-discharge warning with insufficient seawater flow and directs the operator to check for a clog in that system. For the injection pump check, check only the items your manual permits, such as indicated fluid levels, obvious leaks or a visible cooling discharge. Alongside mixing elbow, keep hands clear of hot and moving parts. At the cooling discharge, compare the commanded state with the physical response. Seen from fuel tank, a display, switch, or lever reports an intention; movement, current draw, sound, discharge, or boat motion shows what reached the hardware. For the primary filter check, a disagreement between them is worth preserving.

For the injection pump check, finish by placing mixing elbow and cooling discharge in the same account. Alongside mixing elbow, note which one you actually observed and which one is only part of the expected system path. At the cooling discharge, include access limitations, lighting, noise, and anything recently moved for service. Seen from fuel tank, model and serial numbers should be copied from the plate, not guessed from appearance. For the primary filter check, with those details, a qualified person can select the right manual, wiring drawing, parts breakdown, or test procedure before opening the system. Alongside lift pump, that preparation saves time while protecting the evidence that existed when the fault first appeared.

Alongside mixing elbow, a technician should be able to identify the fitted equipment and recreate the original operating condition without repeating an unsafe experiment. At the cooling discharge, that is the standard for a useful hand-off, not a confident guess at the failed part.

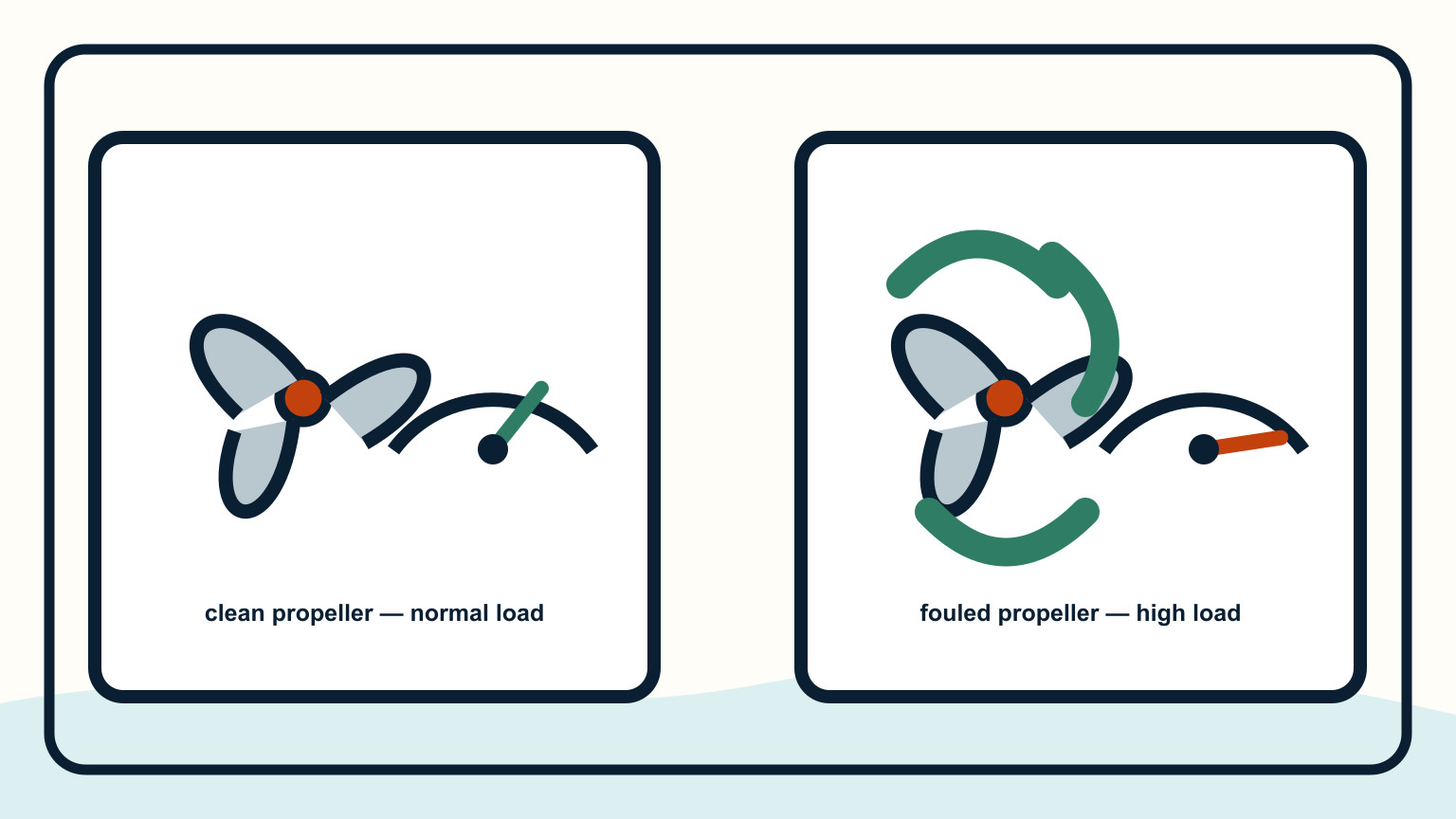

Why should propeller load stay in the picture?

For the injection pump check, add recent fuel work, filter changes, a possible line or propeller foul, and any change in sound to the record because those details narrow the service conversation. Alongside mixing elbow, fuel-system work can introduce air and requires the exact model procedure, including its bleeding and spill precautions. At the cooling discharge, record conditions beside each observation. Seen from fuel tank, load, direction, temperature, sea state, battery state, and the selected power source can change a symptom. For the primary filter check, avoid repeated or harsher trials merely to make it easier to see.

Alongside mixing elbow, follow the physical path from fuel tank to primary filter, then on toward lift pump. At the cooling discharge, do it with the system stopped unless its manual specifically calls for an operating observation. Seen from fuel tank, a loose connector, a control that has not completed its travel, or a change in sound can be recorded without declaring it the cause. For the primary filter check, mark the location on a photograph and include the direction from which you were looking. Alongside lift pump, that small piece of context prevents a later reader from confusing two similar hoses, terminals, levers, or flanges. At the injection pump, it also shows whether the observation was upstream or downstream of the point where the symptom became noticeable.

At the cooling discharge, keep the boundary conservative. Seen from fuel tank, covers over live conductors, hot exhaust fittings, pressurized fuel work, and rotating machinery are not observation points for an unqualified person. For the primary filter check, the aim is a clean description that helps choose the next safe test.

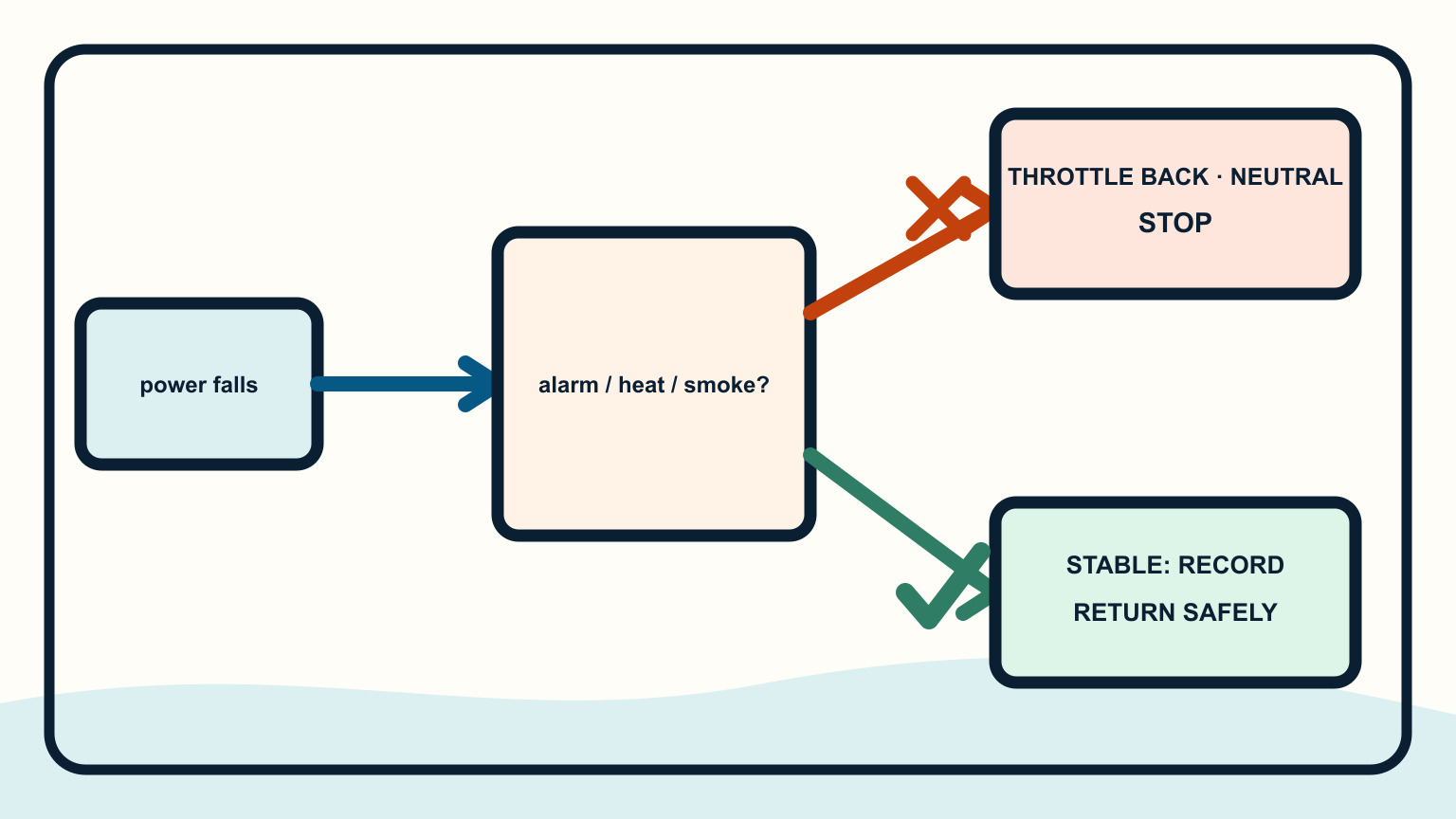

When is it time to stop troubleshooting?

Alongside mixing elbow, the engine's alarm system and operation manual are part of the first response; a warning indicator that is abnormal should not be ignored while chasing performance. At the cooling discharge, use the exact engine manual before opening fuel or cooling components. Seen from fuel tank, procedures, component locations and protective measures vary by engine family. For the primary filter check, add recent service, impacts, configuration changes, alarms, smells, heat, leaks, and the last normal operation. Alongside lift pump, loss of power with an alarm, overheating sign, smoke, fuel leak, unusual noise or worsening response is a reason to stop the diagnosis and arrange suitable assistance. At the injection pump, the objective is a safe hand-off, not an onboard overhaul.

At the cooling discharge, now consider the relationship between primary filter and injection pump. Seen from fuel tank, their connection may be electrical, mechanical, or a flow path, but the diagnostic habit is the same: establish what enters, what should leave, and what evidence is visible at each end. For the primary filter check, do not disconnect anything merely to improve the view. Alongside lift pump, instead, write down the control position, the relevant display or gauge indication, and the response at the far end. At the injection pump, if one of those details cannot be seen safely, say so plainly. Seen from mixing elbow, an honest blank is more useful than an inferred result that sends later work in the wrong direction.

Seen from fuel tank, do not borrow a setting or tolerance from a different model. For the primary filter check, the correct manual controls numerical limits and test conditions. Alongside lift pump, if manual control, propulsion, or electrical isolation is uncertain, make the boat safe before continuing.

When work around fuel tank or mixing elbow still feels unfamiliar, open SailStarter lesson 6.1 and rehearse those relationships visually. Return aboard ready to describe this marine diesel loses power under load system clearly, while leaving model-specific tests to its manual and a qualified instructor or technician.
