A winch looks simple from outside, but similar drums can hide different retainers, gear stacks, and self-tailing assemblies. A generic strip-down can leave a pawl reversed, a washer misplaced, or a drain blocked. The safest owner job is a clean, documented service of a model whose instructions you understand. If the unit is cracked, badly corroded, electrically powered, seized, or carrying unexplained wear, bring in a qualified technician rather than forcing it apart on deck.

Identify the Winch and Prepare the Work Area

Find markings on the top cap, drum, base, or documentation and compare them with manufacturer images. Record the exact model before ordering a kit. Download the current manual and print the exploded diagram. Read the complete procedure once, noting special tools, single-use parts, lubricant locations, orientations, and torque instructions. Confirm whether servicing can be done in place and whether access below deck is involved.

Choose settled weather or work under cover. Remove sheets and halyards from the drum so no hidden load remains. Isolate powered equipment nearby and follow the dedicated lockout instructions for an electric or hydraulic winch. Surround the base with towels or a temporary catch so a spring, pawl, or screw cannot bounce overboard. Set out labeled trays, lint-free cloths, a soft brush, approved cleaner, specified lubricants, and correct replacement parts. Never use the winch as a convenient cleat while it is open.

Sailboat winch and handle against blue water

Disassemble Methodically and Control Small Parts

Follow the manual's sequence exactly. Take a photograph before removing each component, then place it in order with its top, bottom, and orientation clear. Some parts lift freely while others are retained. Do not pry against the deck or strike a casting because an online demonstration appears similar. If a step does not match the diagram, stop and verify the model.

Pawls and their small springs deserve special attention. Cup a hand or clear bag around the area as the manual allows so stored spring force cannot launch a part. Keep paired and directional components identified. Note spacers, keys, washers, seals, gear positions, and drain passages. Do not mix parts from a second winch until the first is complete. A phone full of close photographs and a row of labeled trays are more reliable than remembering how a stack looked an hour earlier.

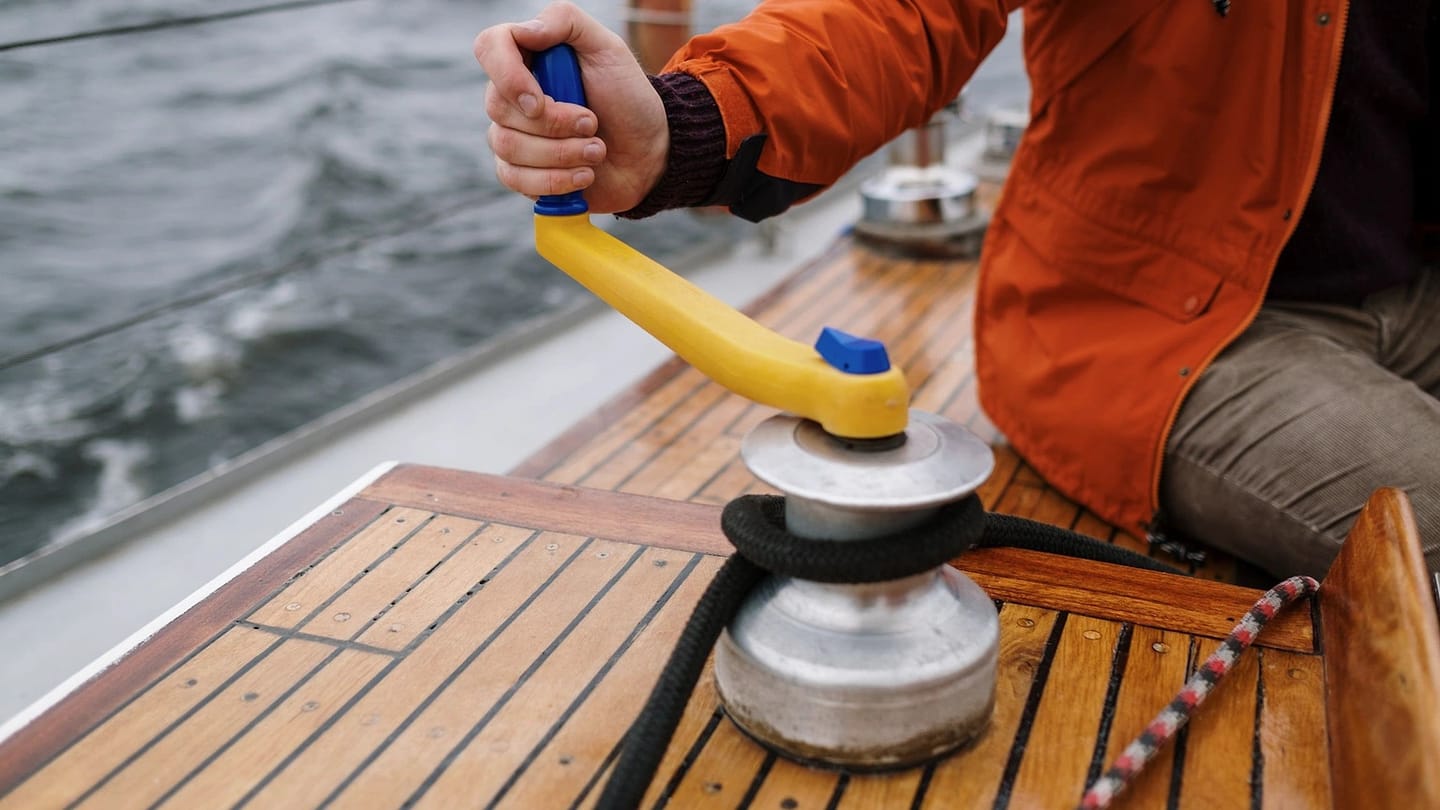

Sailor operating a winch on a wooden deck

Clean, Inspect, and Lubricate the Correct Places

Remove old lubricant and contamination with the cleaner and method approved by the manufacturer. Protect plastics, seals, paint, bedding, and the water from incompatible solvent. Dry every part and inspect it in good light. Look for chipped or rounded gear teeth, pawls that do not move freely, tired springs, rough bearings, scoring, cracks, corrosion, distorted retainers, worn self-tailing jaws, and damaged seals. Compare uncertain wear with the service limits or ask the manufacturer.

Lubricant is not one universal coating. Lewmar's service material, for example, distinguishes gear grease from its light lubricant for pawls and springs. Grease used in the wrong place can slow a pawl instead of protecting it. Apply only the specified product, amount, and location. A thick packed layer collects dirt and may obstruct movement or drainage. Replace parts that the manual marks as worn or single-use; a cleaning does not restore a weakened spring or damaged gear.

Close view of winch, rope, and deck beside water

Reassemble, Test, and Record the Service

Rebuild the winch in the manual's order, checking every photograph and diagram. Verify pawl movement before closing the next layer. Confirm gears, bearings, keys, washers, seals, and self-tailing parts face the right way. Tighten fasteners using the stated method and values where provided. Make sure drains remain open and no cloth, label, tool, or spare part is left inside.

Turn the drum and handle slowly by hand before adding line. Each direction and speed should engage as designed without binding, skipped clicks, unexpected free movement, or grinding. Then make a controlled low-load test where a problem cannot endanger crew or equipment. Keep hands, hair, and loose clothing clear, and never use fingers to investigate a moving mechanism. Record model, date, observations, parts, lubricant, and the next manual-directed service point. Recheck the base for movement or leaks that indicate a separate mounting problem.

Sailboat moving under white sails

Prepare for parts that look alike

Find the maker and model before opening the winch, then obtain the correct service instructions and parts diagram. Clear the work area and block openings where a small spring or pawl could disappear. Take an overview photo before removing the drum and another at each layer. Lay parts down in removal order without mixing assemblies from another winch.

Do not assume a nearby winch is identical. Model, size, age, and previous repairs can change the stack. If the manual and hardware disagree, stop and identify the unit rather than forcing the diagram to fit.

Clean and inspect before lubricating

Remove old contamination using products and methods allowed by the maker. Inspect gear teeth, bearings, pawls, springs, shafts, fasteners, seals, and the drum for wear, corrosion, cracks, distortion, or missing pieces. Cleaning makes these surfaces visible. It does not restore a damaged part.

Keep pawls and springs together as a working pair where the instructions require it. A pawl must move freely and return under spring force. If a part is damaged or its condition is uncertain, use the specified replacement or qualified service. The deck hardware guide helps you identify how the winch fits into the line-handling system around it.

Put the right lubricant in the right place

Follow the model instructions for grease and oil. Apply only the amount directed. Excess grease can attract dirt and may interfere with parts that need free movement. Pawls commonly receive a different lubricant treatment from loaded gear surfaces, so do not coat every part with the same product.

Keep lubricant off line-gripping surfaces unless the maker directs otherwise. Wipe away excess before reassembly. If you cannot identify a surface or product, stop and check the manual.

Test without a loaded sheet

Reassemble in the documented order, checking clips, keys, fasteners, and the drum before fitting the handle. Turn the winch by hand in both directions. Listen for the expected pawl engagement and confirm that it does not bind. Test each gear change without a sailing load.

Only return the winch to service after the unloaded checks match the instructions. Keep fingers, clothing, and loose lines clear during testing. Under way, use the basic winch technique and never use the handle or body as a substitute for correct turns and a working self-tailer or cleat.

Record the date, model, products, parts replaced, and any wear to monitor. A service log helps the next person follow the same method and prevents an unexplained noise from being dismissed because the drum still turns.

Use SailStarter's winch-technique lesson to review safe line handling before testing the serviced unit. Start by photographing the winch markings and matching them to an official exploded diagram. Build one small service kit for that model, including catch cloths and labeled trays. Work on one winch at a time, keep every part in order, and write down any wear you cannot confidently judge. After reassembly, test by hand and then under a modest controlled load. A winch service is successful when the mechanism is clean, correctly lubricated, fully accounted for, and predictable in use, not simply when the drum turns again.

Before loading the serviced winch, ask a second person to compare it with the manual and your removal photos. Confirm drum retention, handle engagement, direction, gear changes, and pawl sound. Remove every rag, tool, loose fastener, and cleaning product from the deck.

At the first use, apply load gradually in suitable conditions and keep an alternative line-control plan available. Stop for binding, slipping, an unexpected sound, or a drum that does not retain correctly. A service is complete only after documented reassembly, unloaded checks, and a controlled return to work.
