What Do Diesel Exhaust Smoke Colors Mean on a Sailboat?

A small, short-lived haze is different from a dense cloud that keeps appearing. Yanmar's troubleshooting tables give several possible causes for each colour. That is the main lesson here. Your job is to describe the symptom accurately, protect the boat, and give the right person a better starting point. If smoke arrives with an alarm, rising temperature, strange noise, oil loss, or reduced power, stop treating it as a colour question.

Start With A Useful Observation

Look from a safe position where you can see the wet-exhaust outlet without reaching over moving machinery or leaning into the engine space. Note the smoke colour in ordinary daylight, then write down whether the engine was cold, how long it had run, approximate throttle position, sea state, and whether the boat was in gear. A phone video can preserve the colour, sound, panel, and conditions better than a memory after the engine has cooled.

Smoke can look different against a bright sky, a dark dock, or a low sun. Water vapour at the exhaust outlet can also look white for a moment. Avoid declaring a fault from one glance. Instead, compare what you see with the engine's usual behaviour. A new, continuing cloud is more useful evidence than an occasional faint trace you have seen since launch day.

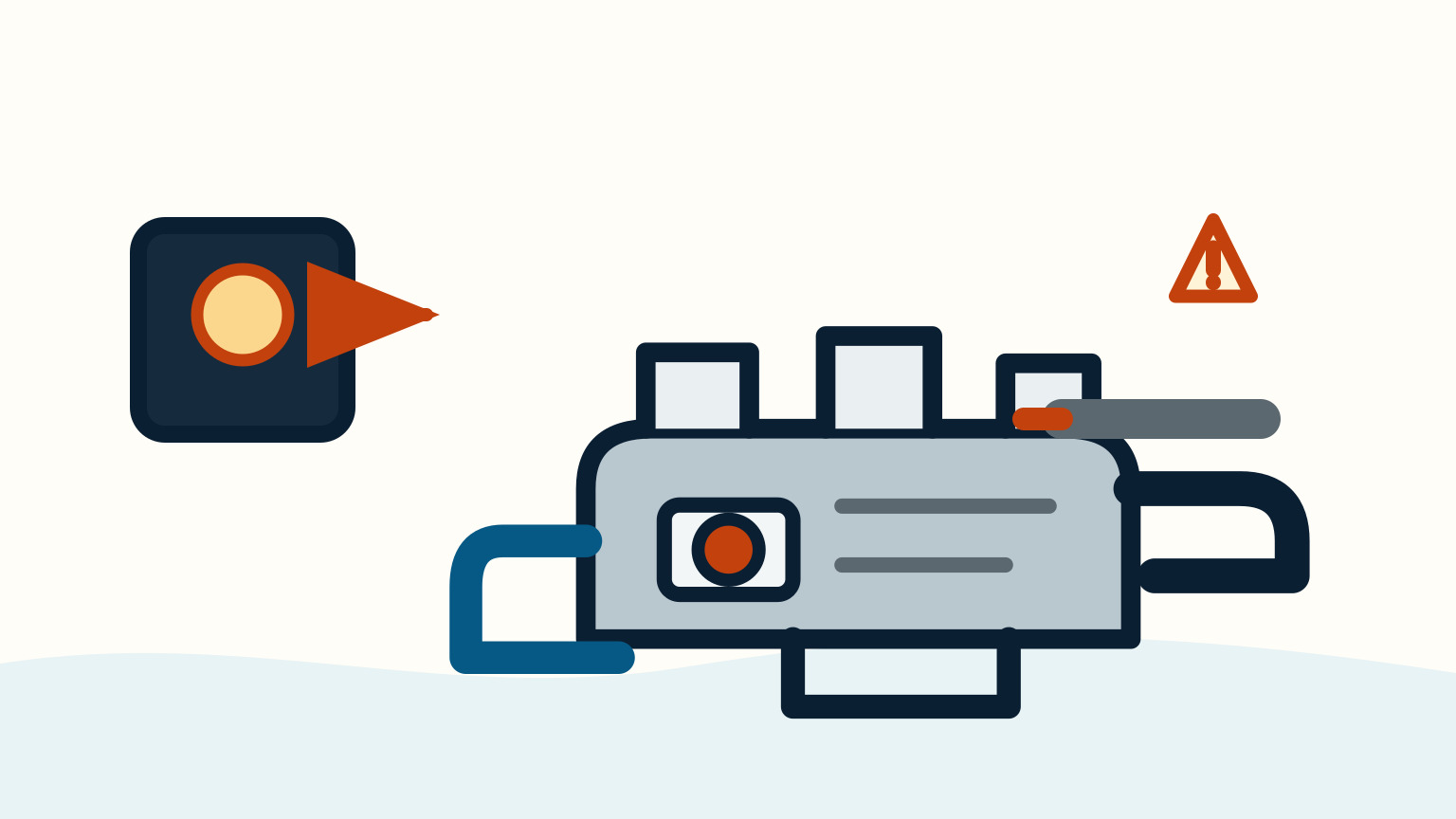

Check the panel from the helm as part of the observation. An oil-pressure, temperature, charging, or cooling-water warning changes the priority. For the first five minutes of any run, the routine in sailboat engine checks is a better companion than a smoke chart. It keeps attention on alarms, cooling water, vibration, and leaks together.

Do not open a hot cooling cap, touch an exhaust hose, or run the engine with the compartment closed simply to collect a better sample. If the smell is harsh, a person feels unwell, or smoke is entering the cabin, get people into fresh air and end the test. The observation is finished once it has crossed into a safety problem.

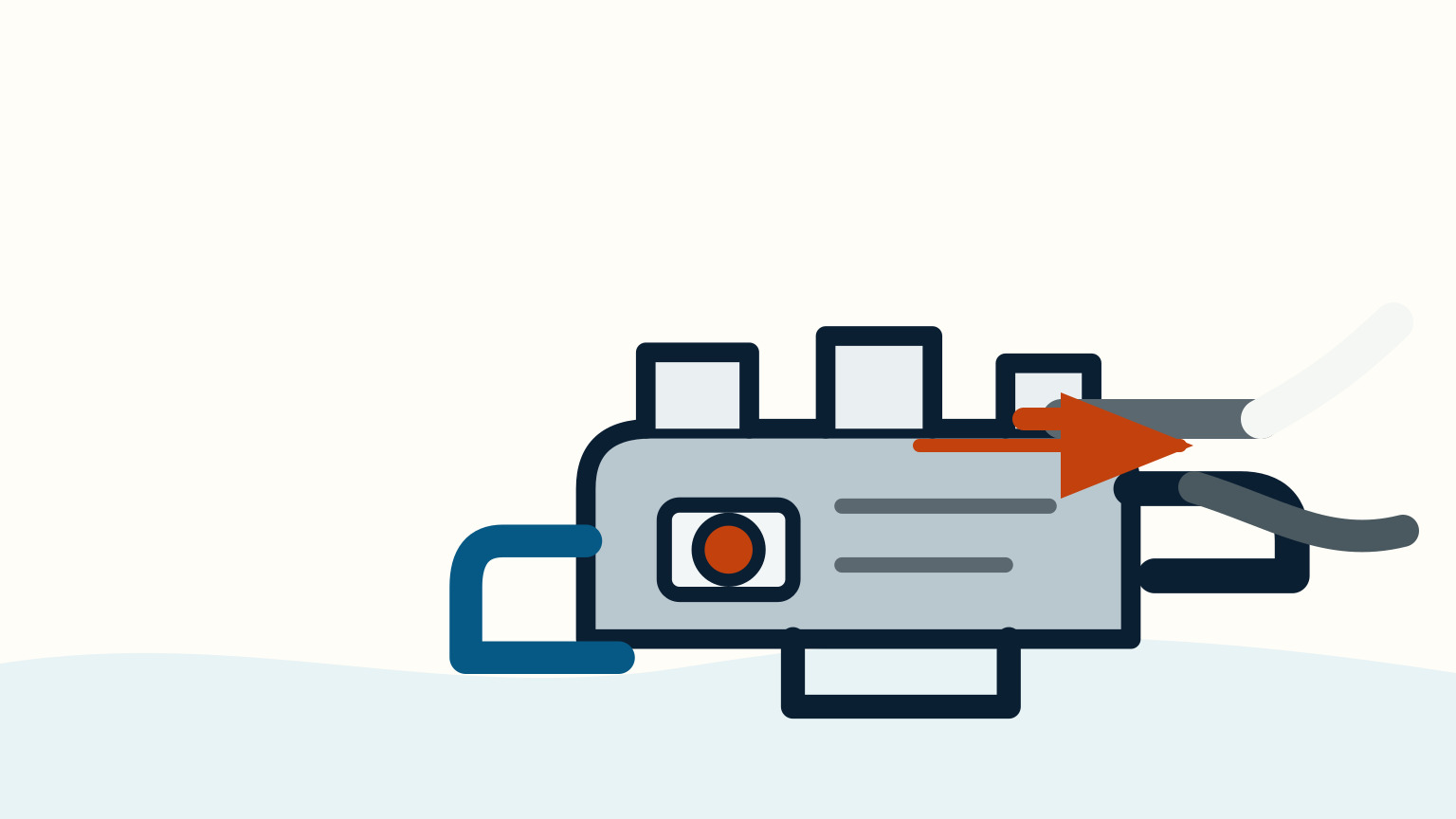

Read Black Smoke In Context

Black smoke under load is often the colour people notice first because it stands out against water and sails. In one Yanmar troubleshooting table, possible causes include increased load, a contaminated turbocharger blower, unsuitable fuel, injector trouble, and excessive valve clearance. That range is wide. It means black smoke does not tell you which component to clean or replace.

Add the load to your notes. Did the smoke begin when motoring into chop, after fouling was noticed, during a hard acceleration, or at the same throttle where the engine normally runs clean? Did boat speed fall? Did the exhaust note change? A propeller, hull, or rope issue can matter to the engine without being an engine-internal fault. This is why a short sea-trial observation and a dockside idle observation can point in different directions.

Use only checks that your manual makes accessible. A loose-looking external intake hose, a blocked air inlet, or debris around a propeller may be visible. Fuel injection, valve setting, turbocharger work, and internal wear are not beginner repairs. The marine diesel maintenance checklist can help you separate regular inspection from diagnosis.

If black smoke is paired with substantial loss of power, an alarm, or a new mechanical sound, do not ask the engine for more power to test it. Record the throttle setting and symptom, then follow the manual's stop and service direction. Forcing a loaded engine gives you poorer evidence and may turn a small fault into a larger one.

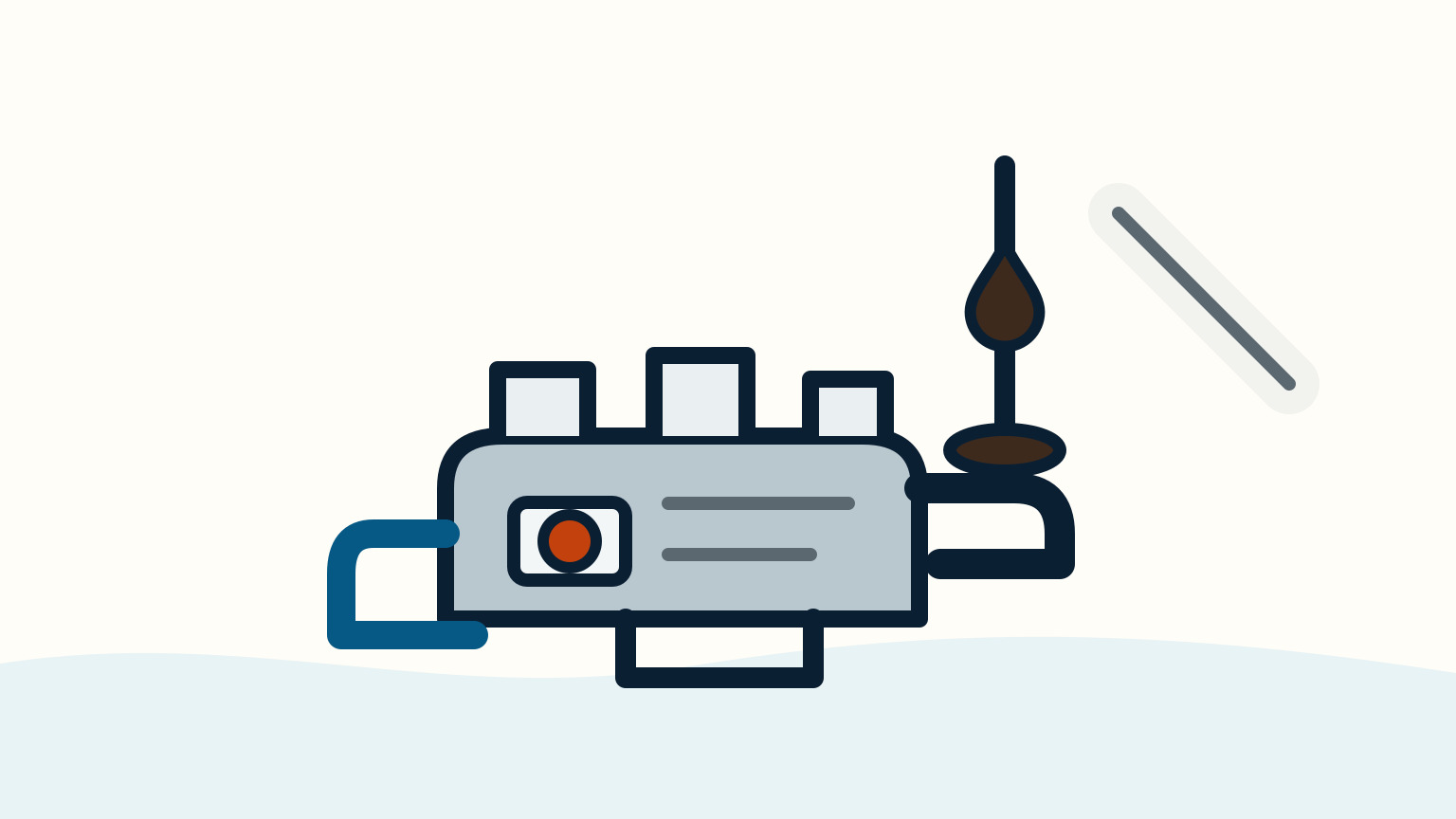

Treat Blue Smoke As An Oil Clue

Blue smoke is commonly discussed as an oil clue. A Yanmar manual lists worn piston rings or cylinders among possible causes for blue smoke on that engine family. It also lists oil-burning and excessive oil consumption within its white-smoke troubleshooting row. Those examples show why colour categories overlap at the exhaust. They are not a licence to name the failed part from the cockpit.

The helpful question is whether the engine's oil behaviour has changed. Use the correct dipstick procedure from the installed manual, on the stated boat attitude and after the stated waiting period. Record an actual level, not "seems low." Also note fresh oil around accessible hoses, filter seals, or the engine pan, but do not confuse an old stain with an active leak.

Blue smoke alongside a falling oil level deserves a prompt engine-manual review. Do not keep topping up and carrying on without understanding why oil is leaving the normal system. Too much oil can be as unhelpful as too little, and the right level depends on the specific engine. Avoid pouring oil into a hot, running engine compartment.

A technician can use your notes to decide whether the next step is an external leak check, intake inspection, pressure testing, or another model-specific procedure. Your record should include oil type if known, last service date, hours since service, smoke timing, and whether the exhaust changed after warm-up. That is much stronger than a report that simply says "it smoked blue."

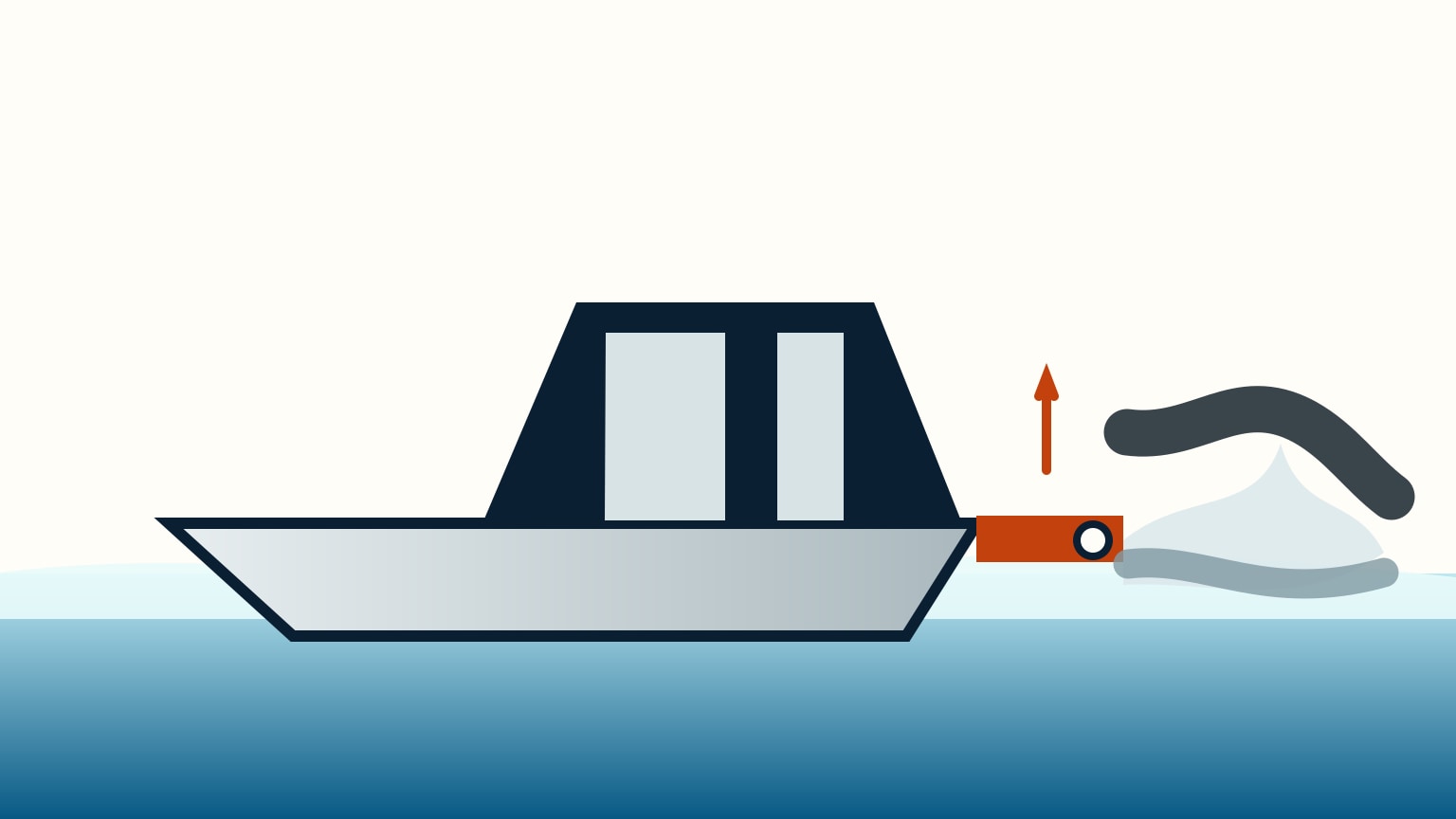

Keep White Smoke Separate From Steam

White-looking exhaust has several explanations. In Yanmar's marine troubleshooting material, a cold engine is one possible source. The same material lists fuel quality, injection, timing, and oil-related causes in other contexts. Another Yanmar manual distinguishes white smoke with water vapour from different internal cooling concerns. You cannot reliably sort those possibilities from colour alone.

Start with time and temperature. Does the haze clear as the engine reaches its normal operating condition? Does the cooling-water discharge look normal? Is the coolant level changing according to the correct cold-engine check? Never remove a pressurized cap to answer that question. A missing or weak wet-exhaust discharge deserves its own immediate response, explained in no cooling water from a sailboat exhaust.

Use your senses cautiously. A fuel smell, a sweet coolant-like odour, a new vibration, or rough running can be part of the description, but none proves a cause. Do not breathe exhaust deeply to identify it. Stand upwind where practical, keep the engine space ventilated as your manual directs, and step away if fumes collect below decks.

White haze that persists after normal warm-up, returns under ordinary load, or arrives with coolant loss, overheating, or a warning lamp needs a service decision. Tell the technician exactly when it appeared and what changed with temperature. That lets them test the right system rather than beginning with a generic smoke-colour guess.

Decide When To Stop And Escalate

Stop the engine in line with its manual if a warning alarm sounds, cooling water disappears, temperature rises, oil pressure indicates a problem, smoke becomes heavy, or you smell burning insulation or fuel. The point is not to be dramatic. Those symptoms can involve systems that become expensive or unsafe if you keep asking them to work.

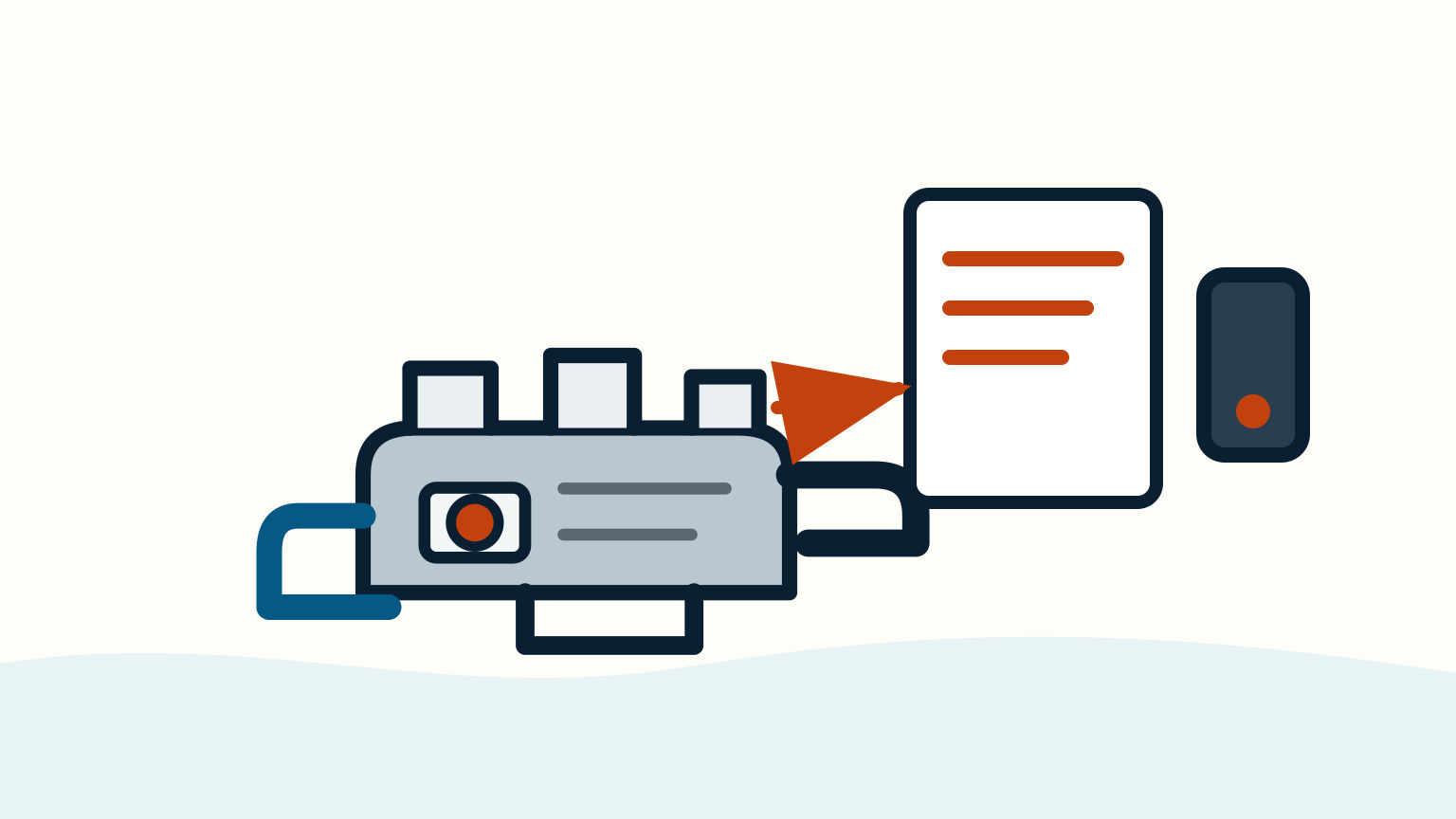

Before calling for help, gather only the evidence that does not add risk: engine make and model, running hours, recent fuel or oil work, panel warning, smoke colour, weather, throttle, load, cooling-water appearance, and a short video. Say whether the engine was stopped promptly or whether it was run again. A clear timeline helps the next person decide what needs inspection first.

Then leave the investigation at the right boundary. An engine manual may tell you to check a level or a visible restriction. It may also tell you to consult a dealer. Follow that distinction. Sailboat engine won't start covers another useful principle: several symptoms can share a cause, and one observation should not become a confident repair plan.

Smoke is a language of clues. Read the whole sentence: colour, time, load, panel, sound, fluid levels, and what changed. That is how you turn a worrying sight at the stern into an orderly next step.

SailStarter's systems lessons help you recognize the route from fuel and cooling water to the exhaust. Use them to prepare questions and observations, then let the installed engine manual and a qualified marine technician direct any repair.
