Furlers look simple from the cockpit because a line makes the sail roll away. The system is doing several jobs at once: the sail has to luff, sheets need to run free, the drum must take line evenly, and the headstay foil must rotate while the halyard remains clear. A problem at one end can feel like resistance at the other.

Take The Load Out Of The Sail

Begin by reducing wind pressure in the headsail. Head the boat into a position where the sail can luff if sea room and conditions allow. Ease the working sheet in a controlled way. A sail that is full of wind can make a healthy furler feel jammed, and Harken lists wind in the sail as one reason a sail will not furl or unfurl.

Do not leave a crew member fighting the furling line while the helm holds the sail loaded. Agree on short commands: luff, ease, pull a little, stop. Hands should stay clear of drum, line leads, winches, and loaded sheets. A sudden release can move a line quickly, especially in gusts or waves.

If the sail cannot be safely depowered where you are, treat the jam as a boat-handling problem first. Bear away, heave to if appropriate for the boat, seek open water, or call for help. A furler fix carried out in a narrow entrance or under a bridge has more risk than the same inspection at a quiet berth.

How to raise a mainsail uses the same broader idea: when sail gear resists, remove the load and find the reason before using more winch power. That habit protects both hardware and people.

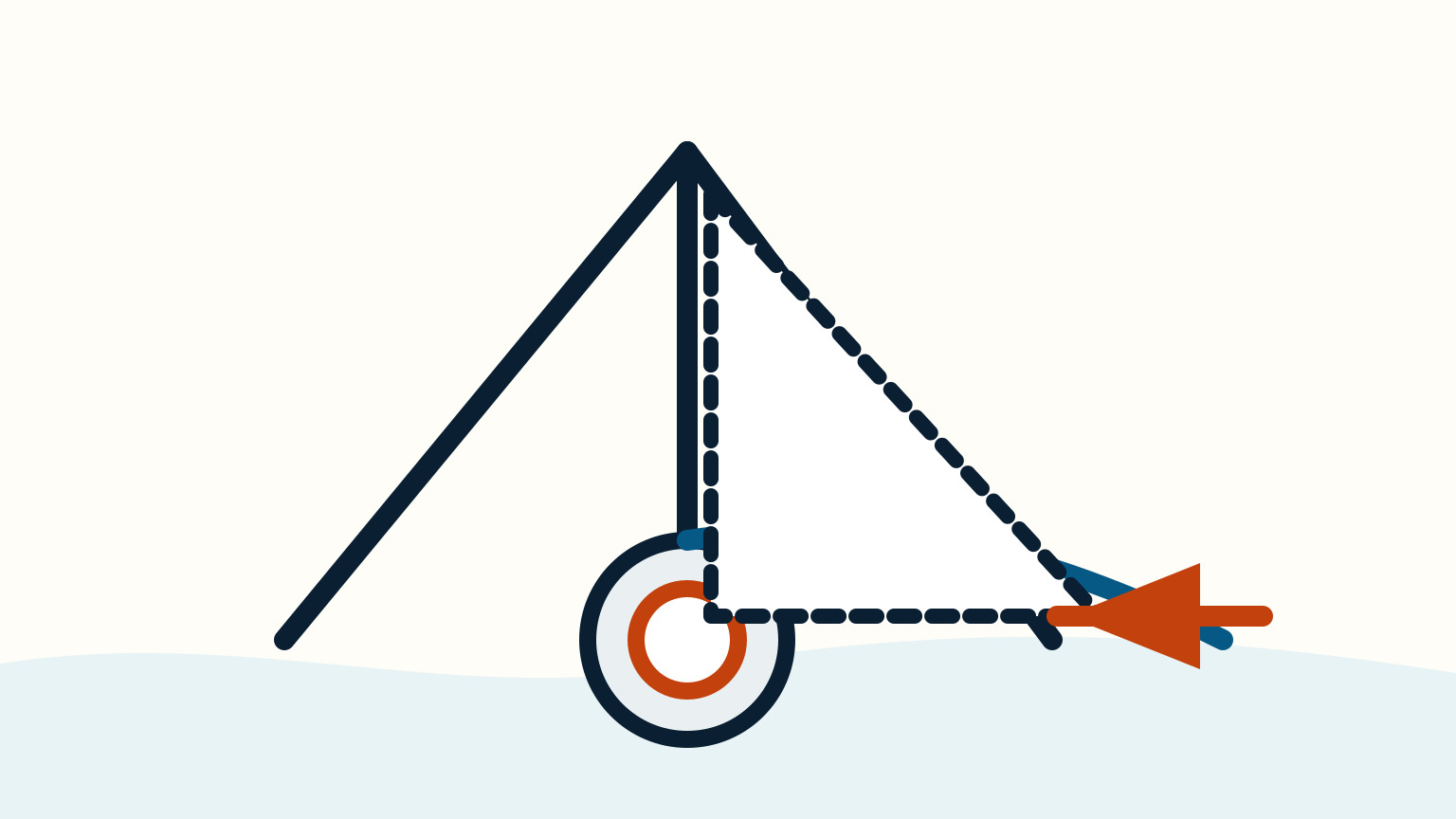

A dashed white headsail and an orange arrow point away from the round furling drum

Look At The Furling Line And Sheets

With the sail unloaded, follow the furling line from cockpit lead to drum. Is it crossed, buried, chafed, trapped under a cover, or running through a lead at an obvious angle? Harken lists a tangled furling line and line-wrap problems on the drum among common causes. That does not make every coil a fault. The line needs to be evaluated against the system's own routing and required number of turns.

Look at both jib sheets too. A sheet caught around a cleat, winch, stanchion, or another line can stop the sail from moving even though the drum wants to turn. When unfurling, a little deliberate drag is normal in many systems. A sheet locked hard, however, can turn a manageable problem into a loaded jam.

Do not pull line from the drum with the sail still loaded. Do not use a winch on the furling line unless the manufacturer gives that method. Small line and drum parts are easy to damage with leverage intended for a sheet. If you find a severe override or line that cannot be removed without disassembling the drum, use the manual or a rigger rather than inventing a sequence.

The line-handling skills in how to inspect sailing lines for chafe are relevant here. A chafed or flattened furling line gives you a reason to check the whole route before replacing the visible section.

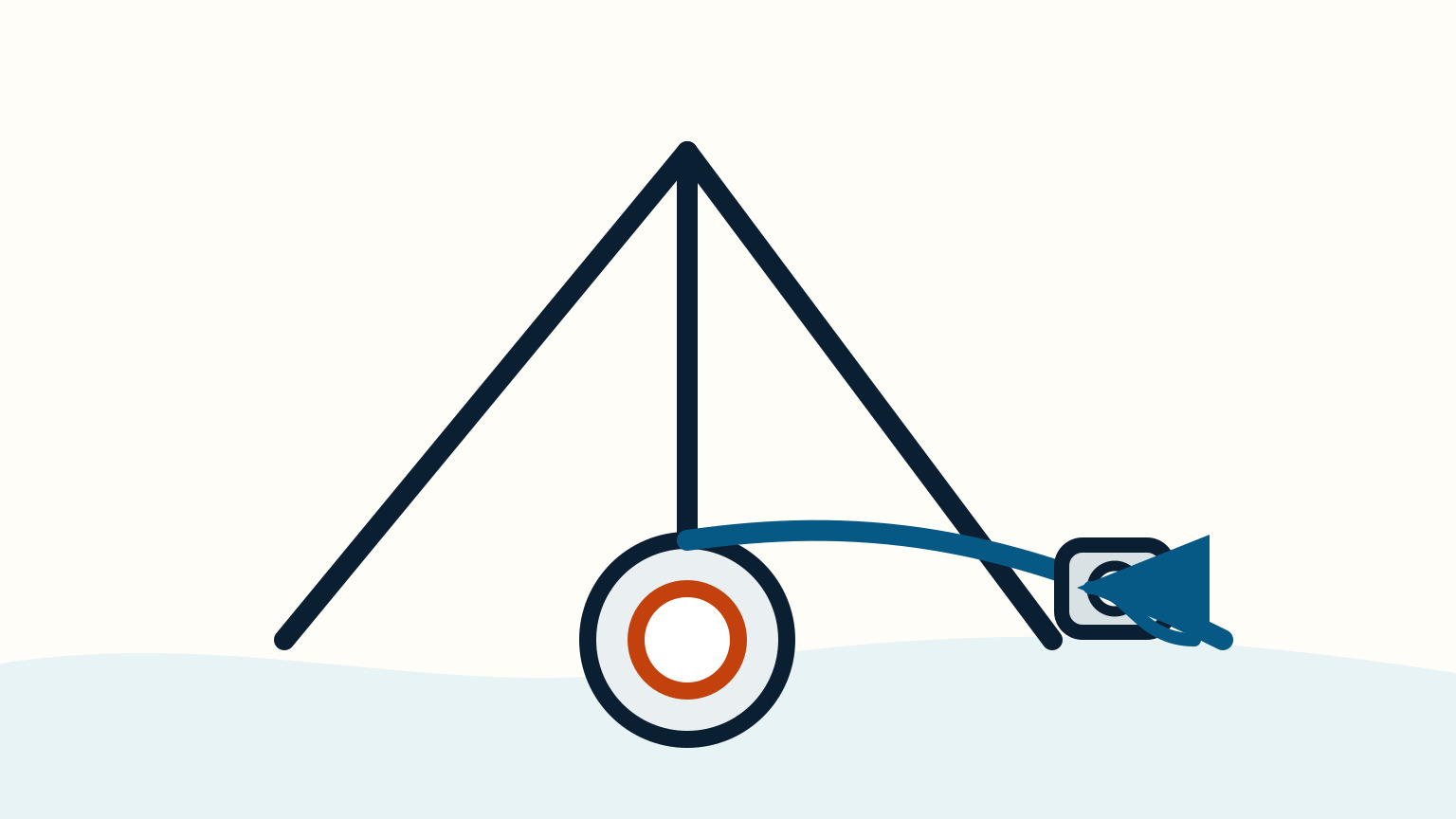

A blue furling line runs through a small grey deck block toward a round orange-rimmed drum

Treat Halyard Wrap As A Stop Sign

A halyard wrap occurs when the sail's halyard wraps around the headstay foil instead of staying clear while the foil turns. Harken calls it a serious furling problem. It can prevent furling or unfurling and may damage the unit and halyard. The cited guidance says not to force the unit to turn.

Clues include resistance that seems high in the rig rather than at the drum, a halyard that has changed its lead, a top swivel sitting in an unusual position, or a furler that turns only briefly before stopping. From deck level, you may not be able to see the top of the system clearly. Binoculars from a safe location can help observation. They do not make climbing the mast an owner-level correction.

Harken's prevention guidance relies on its particular halyard angle and swivel position. Those numbers belong to that hardware. Your furler may need a pendant, deflector, different sail luff length, or professional adjustment. Do not move a masthead lead or tighten the halyard by feel because a general article calls it a wrap.

If a wrap is suspected and the sail cannot be safely lowered by the installed procedure, arrange qualified rigging help. This is a better outcome than turning the foil until the halyard or headstay is damaged.

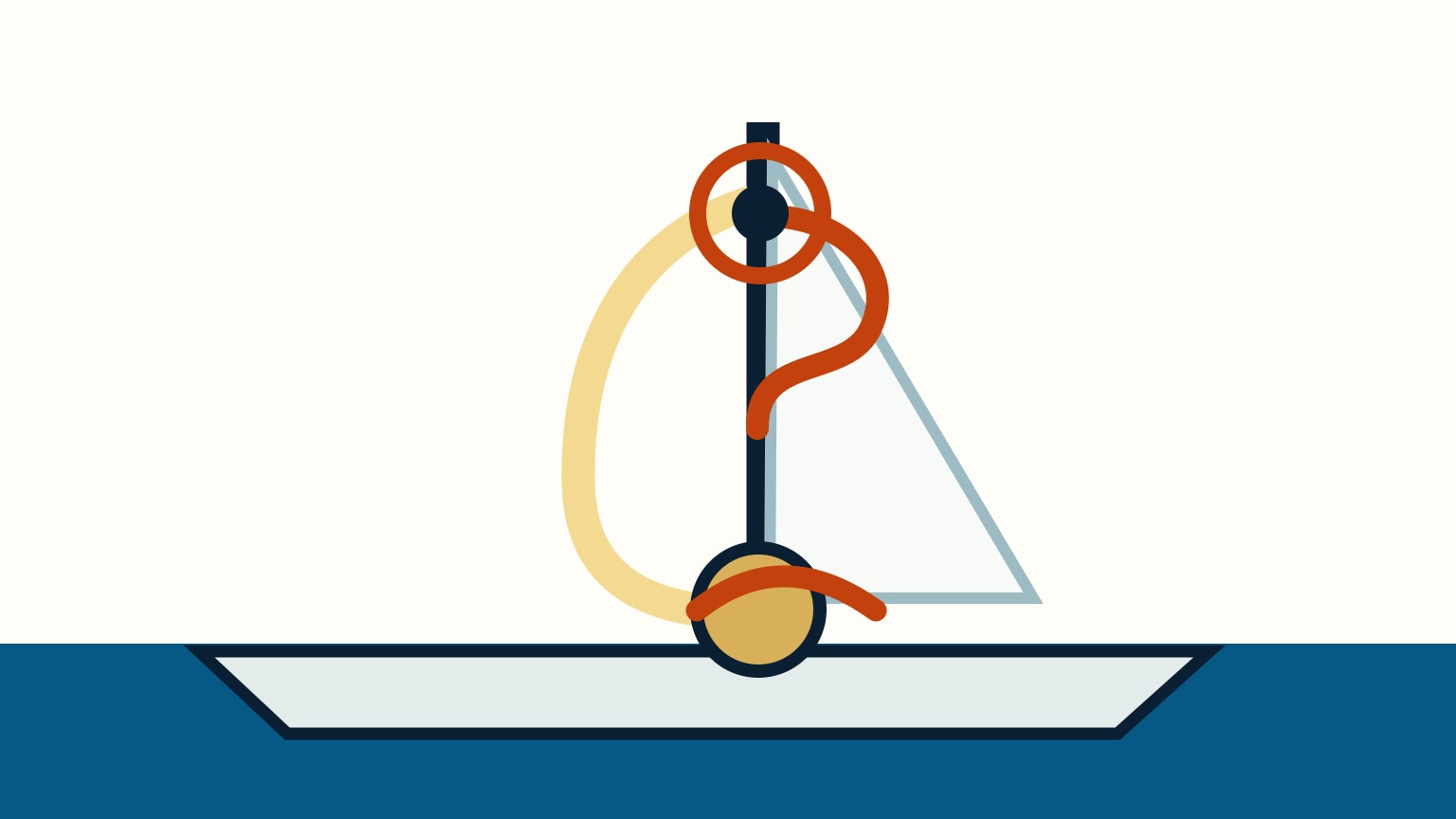

A sailboat bow drawing shows a furling drum and a halyard wrapped around the upper swivel

Check For Dirt, Salt, And Hardware Limits

Harken also lists salt or dirt in bearings among possible causes of a sail that will not furl or unfurl. A boat that has sat for a season, taken heavy spray, or been stored near dust can have a different feel from one used weekly. Note the history. Was the furler smooth at the last outing? Did the problem follow wash-down, storage, new sail work, or a line replacement?

Use only the maintenance method and lubricant the furler manufacturer specifies. Spraying a general lubricant into every visible gap can attract dirt, harm plastic parts, or wash out the intended product. A freshwater rinse may be a valid manual step for one system and unsuitable at a particular moment for another.

Do not confuse a furling problem with a sail-trim problem. A sail that resists rolling because its sheet is loaded needs a handling correction. A sail that rolls but cannot stay furled may have a different issue with line security or the way the sail was wrapped. State which action failed, because it directs the manual to the right troubleshooting row.

Look for visible signs without dismantling hardware: damaged foil connectors, a drum that sits oddly, cracked line guides, a missing retaining part, or an obvious bent fitting. Photograph them. Do not try to realign a foil, loosen a stay, or remove the drum at the dock unless the manual gives a safe service procedure and you understand the rig-support implications.

The standing-rigging perspective in standing rigging inspection checklist is useful here. A headstay and its furling system are not isolated accessories. They are part of the support and sail-handling picture.

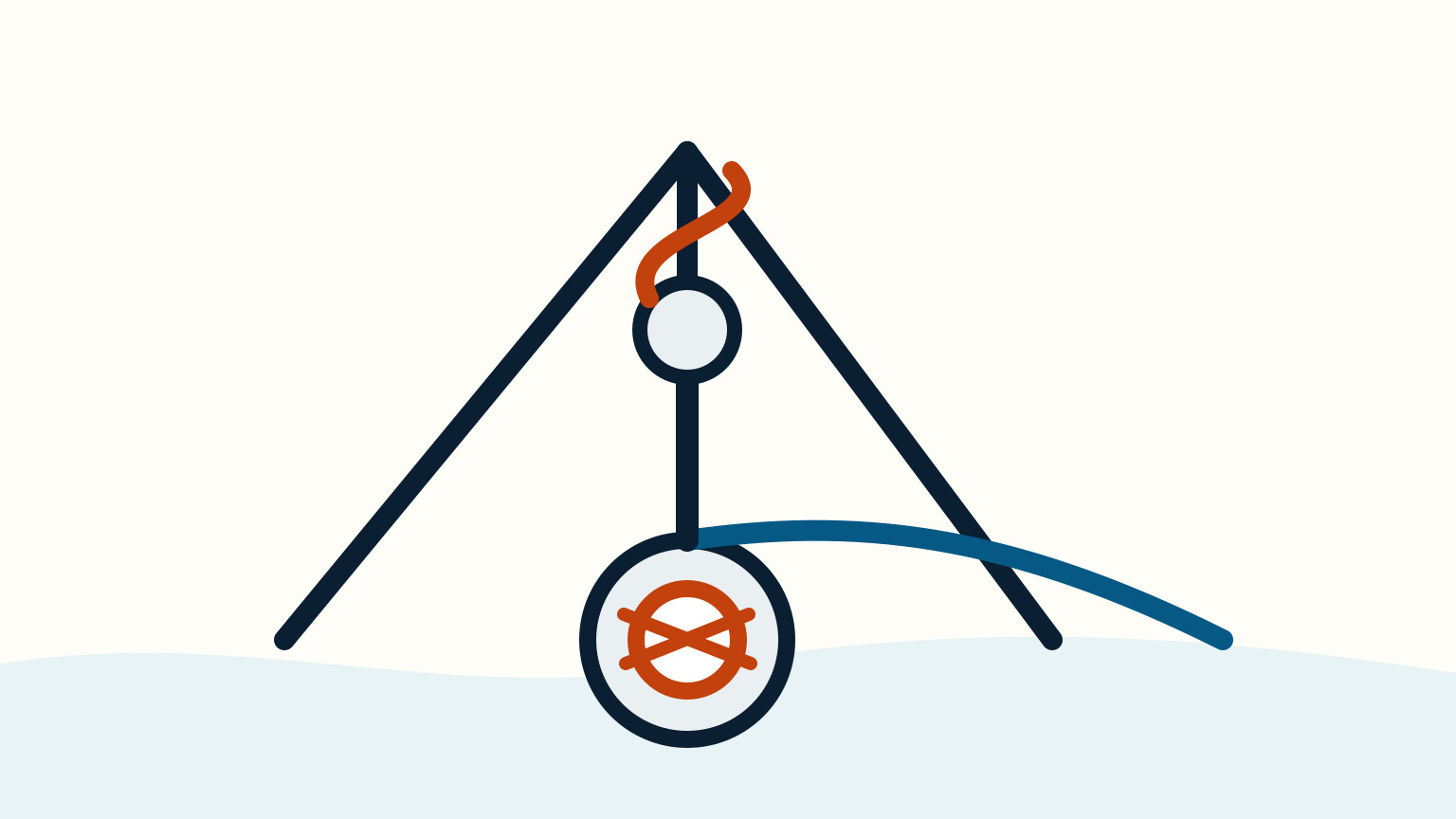

An orange-rimmed furling drum sits below a grey upper swivel with an orange wrapped line and crossed marks

Restore It Carefully Or Get Help

If the manual permits you to free a simple line issue, restore the route with the sail unloaded and the sheets controlled. Check that the line runs through every correct lead and that the drum has the manual-specified reserve turns. Furl and unfurl only in calm, open conditions, with a crew member watching both the sail and drum.

Stop immediately if the same resistance returns, the headstay rotates in jerks, a halyard climbs around the foil, or the sail will not luff. These are not signs that a bigger pull is needed. They are evidence that the system needs a closer, model-specific inspection. Record what happened at each attempt, including wind direction and sheet position.

After a successful check, secure the furled sail according to its manual and keep the furling line secure. A sail that appears furled but is loose on the stay can open in wind. That is a separate problem from a jam and deserves its own visual check before leaving the boat.

The right end point is a furler that turns smoothly under the conditions its maker expects, not a sail forced shut for one night. If you do not have that result, speak to a sailmaker or rigger with the furler model, sail details, photos, and your symptom record.

At the end of the season, add the furling drum, line, leads, and upper-swivel observation to the boat's maintenance record. It is much easier to correct a growing roughness in a controlled berth than after the sail has jammed on a windy departure. The record should preserve change over time, not claim that one clean day certifies the system.

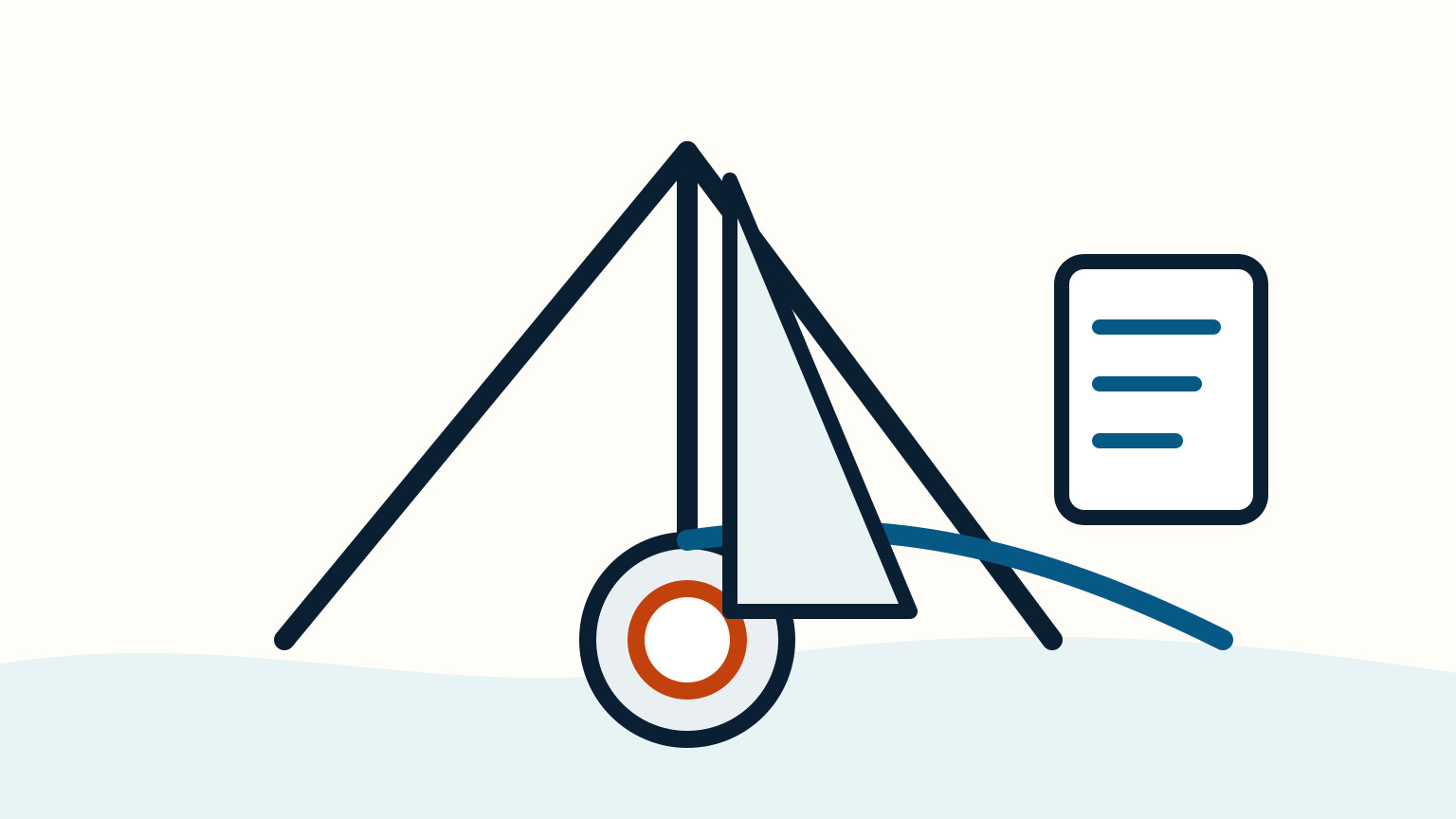

A pale furled headsail and round drum sit beside a lined blue record sheet

SailStarter's sail-handling lessons explain the roles of halyards, sheets, and the headsail. Use the furler's installed manual and a qualified rigger for adjustments that affect the headstay, masthead lead, or hardware condition.
